The Search for Extraterrestrial Artifacts (SETA)

Robert A. Freitas Jr.

Xenology Research Institute
8256 Scottsdale Drive
Sacramento, California 95828, USA

Francisco Valdes
Kitt Peak National Observatory
National Optical Astronomy Observatories*
P.O. Box 26732, Tucson, Arizona 85726, USA

Published in Acta Astronautica 12(1985):1027-1034, IAA-84-243 (A)

Note: This web version is derived from an earlier draft of the paper and may possibly differ in some substantial aspects from the final published paper.


ABSTRACT
The rationale for the use of interstellar artifacts by intelligent life in the universe is described. The advantages of using interstellar probes as a means of exploration and communication are presented and shown to be significant enough to counter the time, energy, and technology arguments generally raised against contact via extraterrestrial artifacts. Four classes of artifacts are defined: Those seeking contact, those seeking to avoid contact, those intended to provide a passive technological threshold for detection, and those for which detection is irrelevant. The Search for Extraterrestrial Artifacts (SETA) is based on the latter two classes. Under the assumption that an extraterrestrial probe will be interested in life in our solar system, a near-Earth search space is defined. This search space is accessible to us now with ground and satellite observing facilities. The current observational status of SETA is reviewed and contrasted with the achievable detection limits for the different parts of the search space.



1.0 THE CASE FOR INTERSTELLAR PROBES

Interstellar exploration to seek life and intelligence in the cosmos using automated messenger probes has been discussed by many authors1,2,3,4,5,6,7. This approach suggests a new observational strategy in the Search for Extraterrestrial Intelligence (SETI), using existing or foreseeable instrumentation, which optimizes the probability of detection of such artifacts in our solar system. We shall call this new strategy the Search for Extraterrestrial Artifacts, or SETA. A SETA program complements past and continuing SETI searches for artificial radio signals8-9.

Numerous arguments disputing the viability of extraterrestrial artifacts as a means for interstellar communication have been critically reviewed in an earlier paper10. The three principal objections are: (1) Interstellar probes require too much energy, compared to radio communication; (2) interstellar flight takes too long; and (3) radio technology is far simpler than probe technology.



1.1 Energy Considerations

To receive interstellar communications that arrive by radio or by messenger probe requires a search using either radiotelescopes or optical telescopes, either of which costs about the same. The costs to transmit observable radio signals or observable probes, over the duration of an entire exploration program covering, say, the nearest million stars, also are comparable. For example, to operate a gigawatt beacon for 1 million years requires about the same energy as deploying a fleet of 100-kg 10%c probes to each of the million target stars at the rate of one per year. During this time the beacon may elicit no response to its call and thus yields zero knowledge. On the other hand, the probe fleet is certain to have returned comprehensive data on a million nearby solar systems even if no intelligent life is found. This seems more cost-effective.

A self-powered interstellar probe which first accelerates to v = 10%c, coasts to its destination, then decelerates to zero velocity, requires a mass-ratio (initial/final mass) Rm = [(c+v)(c-v)]c/V = 1.2 for a photon rocket (exhaust velocity v = c) or 5.0 for a fusion rocket (V = c/8), as calculated according to Purcell11. These are hardly excessive, considering the mass-ratio of about 22 for Space Shuttle. The argument" that Rm is enormous for v = 0.99c merely demonstrates that it is impractical and fortunately unnecessary -- to travel this fast. In addition, probes may be externally powered (e.g., solar-sails, ramjets, or solar-electric propulsion) so mass-ratio is not a threshold parameter for interstellar flight.

Calculations showing that the energy required to launch spacecraft to the stars is equal to many thousands of times the current total global power consumption or will cost 100 Gross World Products12 are irrelevant to SETI. This is because these computations chauvinistically presume current human society to be the standard of comparison for the entire universe. Almost certainly any race capable of transmitting either radio signals or interstellar probes for SETI purposes must be far in advance of ourselves, possibly on the level of a Kardashev Type II civilization (utilizing a major fraction of the energy output of their sun). To launch a 100,000-ton vehicle on a one-way trip at 1-gee acceleration to a destination 100 light-years away requires an equivalent relative energy expenditure for a Type II civilization as the launching of a few Saturn V moon rockets represented to human society more than a decade ago. Active interstellar exploration by advanced cultures will require commitment but hardly an outrageous sacrifice.

Further, if the probe is self-replicating only one initial device need be sent out. For a payload mass of 100 tons13 a single 10%c self-reproducing interstellar probe14 can initiate a wave of galactic exploration for a transport-energy investment of only 1020 J, an expenditure of 30 gigawatts over a period of 100 years (approximate travel time to the nearest stars) which could be entirely supplied by one 15-km-wide, 10% efficient solar power satellite in Earth orbit. Upon arrival, the self-replicating probe could be programmed to construct a gigawatt SETI radio beacon "for free" in the target solar system at a (militarily) safe distance from the home world, or to perform other operations upon planets15 in the target system by remote command as a prelude to colonization by the senders.



1.2 Time Considerations

Electromagnetic signals do travel faster than probes, but upon arrival, radio waves cannot seek out local civilization like a probe. If locals are not actively pursuing SETI, radio cannot detect them as an artifact can. The probe's enormous advantage in establishing a rapid information exchange with local communicants immediately upon arrival (or any time afterwards) more than offsets any slight disadvantage of slower initial transmission speed. Additionally, if there is no communicative life in the target system then radio waves cannot stimulate a response and the mission fails, whereas artifacts can still file a complete and informative report.

Clearly, the proper temporal measure is not mere travel velocity but rather the total time required for successful completion of the mission objective -- to explore, possibly contact, an extrasolar planetary system. By this measure, probes actually save time because an intelligent artifact completes its mission in 102-l03 years after launch as compared to a potentially infinite mission completion time for radio signals which go undetected. If the average waiting time for communicative civilizations to emerge is of the same order as interstellar flight times (102-103 years) or longer, as seems likely, then even the small temporary speed advantage of radio waves evaporates.



1.3 Technologv Considerations

Although radio technology seems less complex, it is also less competent than probe technology for interstellar contact and communication -- and technical competence and simplicity are at least of equal importance in engineering. From the viewpoint of the sending civilization, a "simple" technology likely to fail in meeting its objectives may not be considered more desirable than a "complex" technology which almost guarantees mission success. Also, it is equally easy to receive probes or photons, reception being the only relevant parameter from the point of view of the recipient civilization.

Note too that on Earth the first gas reaction jet and first rockets were built 2200 years and 600 years ago, respectively, pre-dating the invention of radio by many centuries. The results of the Project Daedalus starship study16 suggest radio and interstellar flight technologies probably should be regarded as virtually simultaneous technical developments in evolutionary and interstellar communication time frames. The transmission technology a potential recipient species (e.g., humanity) happens to possess at a given instant in its historical development is largely irrelevant to the choice space of message senders.



1.4 Advantages of Interstellar Probes

Interstellar probes are the only known means to seek out either nontechnological intelligent life or nonintelligent life, neither of which beacon signals can detect. As for technological intelligent life, in the most optimistic case either a probe or a beacon may elicit some local response. But if the locals are uncooperative or are not listening, beaconers will hear nothing whereas probers still get a full report on the physical environment of another star system. The likelihood of gaining some useful information return is always greater for probes than for beacons. Also, a negative cannot be proven, so a beacon operated for, say, 106 years which receives no response permits few definitive conclusions regarding the galactic distribution of life and intelligence. Only probes can reliably and conclusively return information from every star system surveyed, sufficient to establish the truth or falsity of statistical assertions concerning ETI.

Messenger probes become independent agents as soon as they are launched. If properly designed, there should be no further need for major energy expenditure by the originating civilization. Sophisticated artifacts may be self-repairing or self-replicating6,13,14 and could be capable of refueling or reproducing at every port of call. Launching a single self-replicating "seed" probe could establish a wave of exploration across the entire Galaxy in 1-10 million years, using just 11 generations of daughters with 10 daughters per generation17. Upon arrival, probes can employ local materials to construct and energize instruments of exploration and replication "for free." In theory, senders can install a permanent, self-repairing galactic communications network at the cost of one initial self-reproducing interstellar probe. Probes can park in orbit for thousands of years or longer, awaiting discovery by emerging communicative cultures on suitable planets in the star system. Alternatively, they may be programmed to execute multistar flyby trajectories until a communicative species is located, then enter into a dialogue with them at little further cost to the originators.

With beacons, huge transmitters must be constantly supervised, serviced, and fed energy that the sending society could probably better use elsewhere. Beacons may radiate energy and information for millennia or longer without gaining any response or any new information in return. This energy, since it was detected by no receiver, in essence was wasted and constitutes pure economic loss for the transmitting society. Except in the rare case of malfunction, no energy spent to build or to deploy a probe is ever wasted.

Another major advantage of probes during acquisition is their ability to place a high-strength "local beacon" signal in the immediate vicinity of the target planet, which will immediately attract attention as unmistakable evidence of the existence of ETI. The extraterrestrial origin of the probe could be quickly and accurately verified to the satisfaction of all skeptics. Much like the current "evidence" for UFOs, an interstellar beacon signal could all too easily be suspected as a hoax, military diversion, or be explained away as an unusual natural phenomenon.

Probes also have greater versatility of action and flexibility of response to unknown conditions at the target star system. Thus an intelligent artifact can select a course of action from a number of available alternatives including flyby, release of subprobes, entering orbit, refueling, contacting local civilization or remaining silent, or proceeding with self-replication. As an added benefit, an intelligent artifact could establish a high-bit-rate noise-free local communication channel on any frequency of the contactee's own choosing2. By comparison, all a remote beacon signal can do is keep signaling blindly. Remote beacons offer no possibility of modifying the signal until at least one light-speed round trip travel time has elapsed. Unlike probes, radio waves cannot modify themselves in response to unexpected target characteristics.

If acquisition occurs, interstellar probes are superior in terms of communications feedback. An intelligent artifact orbiting a garrulous inhabited world may engage in a true conversation with the indigenous civilization, an almost instantaneous, complex interaction between cultures. Responses to questions and answers are immediate, permitting real-time educational and linguistic exchanges with a precision and rapidity no remote (interstellar) radio signaling system could possibly match. Contact via probes provides a potentially richer, deeper interaction than via interstellar radio links. A probe's onboard memory elements may contain an appreciable fraction of the knowledge and culture of the sending civilization. By comparison, electromagnetic message scenarios appear little better than sterile data swaps or massive data dumps with extraordinarily poor bit rates.

An interesting alternative suggestion is that the radio message may consist of instructions to build a probe (or computer) which can then achieve the desired swift interaction". Unfortunately, there are numerous difficulties with this approach: (a) It assumes the technical competence of the recipients is sufficient to correctly construct a device of alien design; (b) it assumes all necessary materials and tools are available to the recipients; (c) it assumes recipients will be brave (foolhardy?) enough to assemble and activate a device whose purpose and operation they cannot possibly fully comprehend; (d) it requires the entire information bank of the probe to be downloaded by interstellar link, plus the general-purpose instructions on building a probe, which together must be a larger data set than the information bank alone.

The use of artifacts gives the overwhelming advantage of military security to the transmitting species3. Interstellar radio beacons are an invitation to disaster at the hands of unknown predatory alien civilizations. In any situation involving contact via electromagnetic signals, the sending society must give away the position of its home star system and its self-encyclopedia at great risk for mere speculative benefits. On the other hand, if local technological activity is detected by an intelligent messenger probe, the device may initiate surveillance or contact without ever having to disclose the identity or whereabouts of its creators. The probe is also free to withhold any sensitive information concerning weaknesses or strengths of the senders. (It could even supply military misinformation, making the senders appear more formidable than they really are and thus discourage aggression.) If the probe must make periodic reports home, this may be accomplished in a manner virtually impossible to trace or to decipher. Probes permit senders to retain control of the interaction; beacons donate that control to unknown, possibly unfriendly, recipients.

Finally, transmitted radio energy rapidly dissipates with time. On the contrary, the databanks of a self-repairing artifact may preserve for geological timescales the knowledge and cultural heritage of the transmitting civilization. This record of successful and failed survival strategies would be an archeological find of incalculable value to an expanding technological species.



2.0 CLASSES OF OBSERVABLE ARTIFACTS

From an observational standpoint all extraterrestrial artifacts fall into one of three major classes: (1) Objects seeking contact, (2) objects seeking to avoid contact, and (3) objects for which contact or detection by us is irrelevant or unimportant4. The simplest assumption is that extraterrestrial technology is sufficient to guarantee the intended result. Thus objects seeking contact cannot be present in our solar system because we have not observed their intentional manifestations. (The sole exception is an object seeking contact but intended to provide a passive technological threshold for detection. The observable members of this subset should be very few in number because the threshold must correspond almost precisely to current human capabilities to explain the lack of detection to date, and yet be observable to us now.) Objects seeking to avoid contact may be present but it is impossible for us to observe them. Thus. only class (3) objects are observable.

The exploration goal restricts the search space for observable class (3) artifacts. These objects must elect to reside in the best possible location from which to monitor phenomena relevant to their mission. Earth is the only known site of life and intelligence in the solar system, so the simplest assumption is that the probe will recognize this fact and take up residence nearby, stationing itself in lunar or cislunar orbit. The Earth's surface is an unlikely site because of increased risk in the active and degradative terrestrial environment, more restricted access to solar energy, and the probe's impaired ability to continuously monitor the entire terrestrial and interplanetary environment during long-term studies.

The goal of long-duration exploration and the need to observe the Earth from space impose size constraints on possible messenger probes. First, an optical ground resolution of 10 meters is required for unambiguous visual detection from orbit of intelligent activity on the surface of the Earth". This requires an optical aperture of ~3-30 meters for a 70,000-384,000 km cislunar orbit. Second, an artifact , must withstand radiation pressure and catastrophic meteoroid impacts likely to occur during the anticipated on-orbit residence time. Freitas4 calculates that the minimum size for defenseless artifacts is >0.2-20 m for a >105-106 yr residence time (~ terrestrial speciation timescale22) in the vicinity of Earth. Finally, exploration is useless unless the artifact can return information to its creators. Radio transmissions at waterhole frequencies 1-10 GHz are optimum in terms of bandwidth, energy cost, and background noise8,9. To achieve a gain of 1 < g < 107 (~ Arecibo) requires a minimum waterhole antenna diameter ~(l/p)gl/2 = 0.01-30 m.

These considerations suggest that a reasonable search limit is for an object of typical dimension ~1-10 m with a visual geometric albedo of ~0.1 (pv = 0.02-0.35 for asteroids), termed the limiting artifact.



3.0 CURRENT SEARCH STATUS

The lunar/cislunar orbit assumption yields a SETA search space consisting of geocentric, selenocentric. Earth-Moon libration and Earth-Moon halo orbits (see Figure 1). The L4 branch of a fifth SETA region. the Sun-Earth Lagrangian tadpole orbits, also is shown in Figure 1. Though the Sun-Earth L4/L5 orbits are of marginal utility for SETA, a small fraction of the region has been partially searched to +19 mag76-77. Site properties, current observational status, and detection limits for limiting artifacts in each principal orbital region are discussed below. Table 1 summarizes the SETA searches performed to date.



3.1 Geocentric Orbits

Cislunar geocentric orbits with apogees beyond the mean distance of the interior collinear Earth-Moon Lagrangian point L1 (326,000 km) lack long-term stability. Szebehely26 suggests a maximum stable radius for planar circular orbits of 244.000 km, a move restrictive limit. Orbits with perigees below 5500 km altitude have lifetimes less than 106 years due to atmospheric drag, whereas perigees above 8000 km yield lifetimes comparable to the age of the solar system27. Perigees between 3000-64,000 km altitude in the Van Allen radiation belts are unlikely because of the increased potential risk (e.g., to electronic systems28) for long-duration missions. The translunar Earth-Moon barycentric orbital volume lying between Earth-Moon L2 (449,000 km) and Sun-Earth L1 (1.49 x 106 km) while apparently quite large appears stable only in a very restricted range of radii, if at all26,29,30,31, and also is unattractive because of its greater distance from Earth. Hence the most plausible search volume lies roughly between two geocentric spheres of radii 70,000 km and 326,000 km, with Earth-relative velocity limits 1.1-3.4 km/sec, search area S = (360)2/p deg2, and total apparent angular rate range Dw = 5.2 x 10-3 deg/sec.

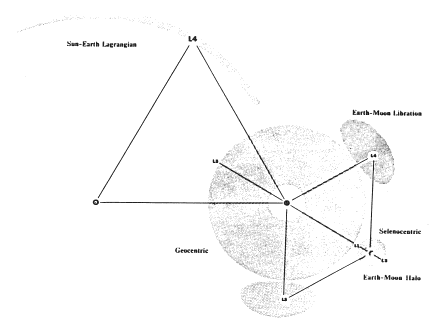

Figure 1. SETA orbital search regions for extraterrestrial artifacts, showing Sun-Earth Lagrangian L4 tadpole width at 10x scale and Earth-Moon system at 200x scale.



Table l. Searches for Extraterrestrial Artifacts
Dates
Instrument
Target
Wavelength
Objective
Hours
Observers
1973-74 Helix Antenna

Shepperton, UK

Earth-Moon:
L4/L5
VHF
Long-Delay Echoes
??
Lawton and Newton [63]
1979 0.76-m Cassegrain
Leuschner Obs., USA
Earth-Moon:
L4/L5 and assoc. orbits
Optical
Orbiting Artifacts
50
Freitas and Valdes [56]
1981-82 0.61-m Schmidt
Kitt Peak Obs., USA
Earth-Moon:
Lunar orbits,
L1/L2 vicinity,
L4/L5 vicinity and assoc. orbits
Sun-Earth: L2 vicinity
Optical
Orbiting Artifacts
56
Valdes and Freitas [58]


Detection of a limiting artifact requires visual magnitude limits from +15 (70,000 km) to +18 (326,000 km). Existing military radars such as the Altair radar at Kwajalein Missile Range monitor the geocentric volume to 40,000 km for 5-meter objects, but none of these pencil-beam radars is effective for search. The new GEODSS (Ground-based Electro-Optical Deep Space Surveillance) system which replaces the SAO Baker-Nunn network can detect +16.5 mag near-Earth satellites but has not been employed for significant asteroid searches and cannot perform well at the required limiting sensitivity. The most comprehensive work is by Tombaugh et al.31 in a 5-year program during which 15,567 photographs were taken in an attempt to discover small natural Earth satellites. The search was confined entirely to the ecliptic and equatorial planes, with excellent coverage below 10,000 km altitude to magnitude +15. However, in the cislunar SETA region Tombaugh searched only three concentric circular orbital zones along the ecliptic — 85,000 km retrograde (173 coverage), 88,000 km direct (342 coverage), and 121,000 kin retrograde (158 coverage). Even if the search could be deemed complete out to Earth-Moon L1 within 5 (Tombaugh's Schmidt field) of the ecliptic, 90% of the search volume would remain unexamined to any serious magnitude limit.



3.2 Selenocentric Orbit

Stable selenocentric orbits cannot have apolunes greater than the mean distance between the Moon and Earth-Moon L1 (58.100 km). Szebehely26 and Markellos and Roy30 give the maximum stable radii for planar circular stable orbits as 28,000 km and 16,700 km for direct and retrograde satellites, respectively. Perilune is only weekly constrained by interaction with the present lunar atmosphere, though Chernyak's suggestion32 of a possible ancient 5 x 10-7 bar lunar atmosphere could increase minimum altitude to several thousand kilometers. Hence the selenocentric orbital search volume lies between 3000-58,100 km, angular diameter 17 (S = 230 deg2) viewed from Earth, with velocity limits 0.3-1.8 km/sec relative to the Moon (Dw = 5.4 x 10-4 deg/sec).

Ground-based detection of a limiting artifact requires a visual magnitude limit of +18 to +19. Pickering33 searched a 300 x 300 square swath to magnitude +10 during lunar eclipse, which Barnard34 extended to magnitude +12. Tombaugh et al.31 performed a multitelescopic survey during lunar eclipse of a 190 circular field to magnitude +13, save a small region near the Earth-Moon axis where the limit was +12. Zones of maximum elongation within 50 of the lunar orbital path were probed to magnitude +14 to +17. Approximately 50% of the selenocentric orbit space was examined by Valdes and Freitas58 with limits from +10 to +16 magnitude.



3.3 Earth-Moon Libration OrbitIn the classical three-body problem, small objects placed at one of the five Lagrangian points in the plane of revolution are in dynamical equilibrium, and two of these, the triangular points L4 and L5, are stable. The true Earth-Moon system represents a four-body problem because of the significant gravitational influence of the Sun. L4 and L5 themselves are unstable, but large, stable libration orbits around them, synchronized with the synodic month, have been shown analytically35-36 and numerically37 to exist. Thus the positions of objects in the stable libration orbits can be computed and unique time-variable ephemerides determined. Each synodic libration orbit has two stable phases 1800 apart with semimajor axis 150,000 km and semiminor axis 75,000 km. Oscillations in the Earth-Moon plane are likely for objects parked for very long periods of time, but deviations from the solar-synchronized positions should be minimal for powered artifacts inserted on precision trajectories. Out-of-plane motion is not seriously excited by the Sun and is almost certainly less than the mean lunar/ecliptic inclination24,35,38-40. Thus the 3-dimensional search volume near L4/L5 is a squat, elliptical cylinder, measuring 300,000 km x 150,000 km in the lunar orbital plane and extending at most 35,000 km above and below the plane, with velocity limits 0.7-1.3 km/sec relative to the Earth, S = 900 deg2 for both regions, and Dw = 1.1 x 10-4 deg/sec.

Detection of a limiting artifact requires a comprehensive search to magnitude +18 to +19. The regions near IAIL5 have been examined for luminous dust clouds following reports of their existance41-47. These investigations covered less than the full 450 deg2 search space near each libration point to limiting magnitudes < +10 and failed to confirm the discovery48-53. Kordylewski also searched the entire region for' discrete objects to magnitude +12, Bruman54 examined a 44 deg2 field near L4 during lunar eclipse using the 48-inch Palomar Schmidt to limiting magnitude +15 to +17. Giclas55 searched a 180 deg2 field near L5 to magnitude +16, and Freitas and Valdes56 performed a preliminary survey near the L4/L5 synodic libration orbits to magnitude +14 - all with negative results. An informal radar search57 near L4/L5 conducted at Arecibo found no targets >10 m2.

In the most thorough search to date. Valdes and Freitas58 photographed the entire 45 libration orbit region within +2.5 deg of the lunar orbital plane near L4/L5 to limiting magnitude +17 to +19 for a limited range of artifact velocities using the 24-inch Warner and Swasey Schmidt telescope at KPNO, but found nothing.



3.4 Earth-Moon Halo Orbits

Periodic halo orbits near the collinear Lagrangian points L1 and L2 have long been known to require stationkeeping due to their dynamic instability", but Breakwell and Brown60 have demonstrated the theoretical existence of families of stable nonplanar orbits. The inclusion of lunar eccentricity ruins the stability, but Breakwell6l believes there is a good chance real stable halo orbits exist. These families lie entirely within a rectangular hexahedral Moon-centered volume measuring 80.000 km x 80,000 km in the lunar orbital plane and 160,000 km in vertical extent. Typical halo object velocity is 0.8 km/sec relative to the Moon, with Dw = 2.8 x 10-4 deg/sec.

The rectangular search space of S = 280 deg2 overlaps considerably with the selenocentric space, representing an additional 90 deg2. Pickering31 surveyed this additional space to magnitude +10, and Tombaugh et al.31 examined about half to magnitude +13. This search is similar to the selenocentric survey except for the anticipated slower motion of halo objects as compared to lunar satellites.

Valdes and Freitas58 searched a region 15? x 24? covering 100% of the predicted Ll/L2 halo orbital space. The magnitude limit for objects moving near the sidereal rate ranged from 12-15th magnitude within 2-4? of the moon to 17-18th magnitude beyond about 8? from the lunar disk, corresponding roughly to objects 3-30 meters in size having lunar surface albedo. For objects moving closer to the lunar rate, 1-2 magnitudes would be lost to image trailing, giving a range of 10-16th magnitude, approximately doubling the minimum sizes of detectable objects.



3.5 Earth-Moon L3 and Sun-Earth L2 Orbits

The possibility of halo-like stable nonplanar orbits in the vicinity of Earth-Moon L3 is unlikely but cannot yet be ruled out on theoretical grounds (Breakwell, 1980, personal communication). The only published search for objects at this position is by Valdes and Freitas58, who surveyed a roughly L3-centered field measuring 25? x 13? to 17-19th magnitude. corresponding to a hypothetical object size of 1-3 motors at lunar albedo.

Until recently, no searches for discrete objects fainter than 14th magnitude near Sun-Earth L2 had been reported in the literature. Valdes and Freitas58 surveyed Sun-Earth L2 because its distance from Earth is only four times that of the Moon, and thus was the only remaining reasonable target for terrestrial-based Schmidt telescope searches for small libration objects. The position of L2 was taken as collinear with the Sun and the Earth-Moon barycenter78. The Sun-Earth L2-centered survey covered a 14? x 14? field to a limit of 17-19th magnitude, which corresponds, depending on the amount of image trailing which might be expected, to an object size of about 4-10 meters at lunar albedo.



4. 0 FUTURE PROSPECTS

4.1 Optical Searches

Though the work of Valdes and Freitas58 has covered a significant portion of the near-Earth SETA search space, this work is not complete and does not approach the ultimate limits on optical magnitudes achievable in the foreseeable future. Continued ground-based optical searches with established technology can complete the coverage of the potential sites and improve the magnitude limits of the surveyed sites to approximately 20-21 mag. This could be done with a large Schmidt photographic camera in 1-2 years on a part-time basis4.

Because of the large spatial and angular rate search space, deeper searches must rely on digital technology which relieves the human observer of the task of visually inspecting images. This requires two major pieces of technology -automated survey telescopes of moderate fields with large format digital detectors, and automated image analyzers. Progress is being made on both fronts. Valdes and Freitas58 attempted to use automated detection techniques with limited success. The ultimate limit with foreseeable ground-based technology is 23-24 mag.

Searches for the smallest likely extraterrestrial artifact in all potential SETA orbital regions may require limits of +27 to +28 magnitude in the visual. This necessitates the use of wide-field, large-aperture, space-based telescopes. The Space Telescope can achieve this limit but. even if devoted full time to a SETA search, would need many decades because of the small field and low data rates to the ground. Selenocentric artifacts could more easily be detected using a lunar-based (surface or orbiting) telescope facility because proximity to the target reduces the required magnitude limits to +17 to +23 for an exhaustive search for the smallest likely artifact.



4.2 Radar and Infrared Searches

Radar and infrared observations offer few significant improvements over visual searches. Artifacts are detectable by radar and searches to ~1-10 m are feasible. Radar detection depends on the total reflection signal in the beamwidth, so p = Nf-l and f ~ p(q1/2)2. The total receiver integration time At is calculated after the method of Jurgens and Bender64 using their reference and asteroid default values (e.g. normalized radar cross-section is s0 = 0.1) and a S/N = 5 db detection limit. The Arecibo S-band radar cannot be pulsed gracefully, hence is unusable for cislunar asteroid searches. The Arecibo B-band radar (q1/2 ~ 4 arcmin) can be adequately pulsed and gives lower search times than the Goldstone, Haystack, or Millstone facilities. Taking Tc. k and PS as before, the Arecibo system can detect limiting artifacts in each of the four orbital regions for values of the apparent rotation vector Wp up to ~0.001-1 rad/sec, or Wp up to ~0.1-100 rad/sec for s0 ~ 1, as compared to the asteroid default value Wp ~ 2.2 x 10-4 rad/sec.

Artifacts plausibly might also be detectable in the infrared. Cislunar objects in equilibrium with the insolation65,66 having a bolometric emissivity ~ 0.1 and a Bond albedo ~ 0.1 have a temperature 390? K and infrared magnitude N = +11 at lunar distance and N = +7 to +10 in the geocentric region for R = 1 m at 10 gm. The AFCRL 11 mm sky survey67 achieved N = 0 to -1, a limit of ~100-300 m, and IRAS68 reached N = +7 to +8 at 10 mm. This gives a theoretical limit of ~3-6 m for all orbital regions after Tc = 0.25 yr, but these limits may not be secure. Selection criteria for the final AFGL catalog were chosen to exclude asteroids and satellites. The original IRAS software was designed to reject asteroids, although a specialty database established for fast-moving objects is being compiled.



4.1 Other SETA Proposals

A few past proposals have emphasized a search for artificial emissions rather than the probe itself. Bracewell1 suggested that the well-known long-delay echo (LDE) phenomenon69-70 was of the type which might be expected as a call sign from an extraterrestrial artifact parked in Earth orbit and desiring to communicate. Lawton and Newton71 performed a series of LDE experiments and concluded the reflection signals were of a pure physical nature, though they later proposed63 that radio call signals should be transmitted to likely probe positions in an attempt to stimulate a response. Kardashev reported "coded signals" from within the solar system of possibly alien origin72, but Western experts believe the signals came from U.S. military communications satellites or from magnetospheric energy discharges73. Kuiper and Morris74 proposed intercepting radio communications between alien probes in the solar system and their extrasolar senders, but admitted that the bandwidth of alien signals may be too wide to easily detect using a modest antenna. Targeted radio listening searches could also be conducted of likely probe residence orbits in an eavesdropping mode to detect unshielded electromagnetic emissions. And searches for radio beacons could establish indirect limits on the existence of probes in the solar system -- a proposed all-sky survey75 would provide observational limits on the minimum size of a solar-powered Earth-Moon orbiting artifact maintaining its own local acquisition beacon.



ACKNOWLEDGMENTS

SETA observation facilities were kindly made available by Kitt Peak National Observatory and by Leuschner Observatory of the University of California, Berkeley, California. Travel funds to present this paper were provided by Kitt Peak National Observatory, the American Astronomical Society Travel Grant Program, and the Xenology Research Institute.



REFERENCES

  1. Bracewell, R. N., 1960. Communications from superior galactic communities, Nature 186, 670-671.
  2. Bracewell, R. N., 1975. The Galactic Club: Intelligent, Lire in Outer Space, W. H. Freeman, San Francisco.
  3. Freitas, R. A., Jr., 1980. Interstellar probes: A new approach to SETI, JBIS 33, 95-100.
  4. Freitas, R. A., Jr., 1983. If They are here, where are they? Observational and search considerations. Icarus 55, 337-343.
  5. Freitas, R. A., Jr., 1983. The search for extraterrestrial artifacts (SETA). JBIS 36, 501-506.
  6. Tipler, F. J., 1981. Extraterrestrial intelligent beings do not exist. Phys. Today 34, 9, 9, 70-71.
  7. Stephenson, D. G., 1982. Models of interstellar exploration. Quart. J. Roy. Astron. Soc. 23, 236-251.
  8. Morrison, P., Billingham, J. and Wolfe, J., eds., 1977. The Search for Extraterrestrial Intelligence, SETI, NASA SP-419.
  9. Billingham, J. and Pesek, R., eds., 1979. Communication with Extraterrestrial Intelligence, Pergamon Press, Oxford.
  10. Freitas, R. A., Jr., 1983. The case for interstellar probes. JBIS 36, 490-495.
  11. Purcell, E., 1961. Radioastronomy and communication through space, U.S. Atomic Energy Comm. Report, BNL-658. Reprinted in A. G. W. Cameron, ed., Interstellar Communication, W. A. Benjamin, Inc., New York, 121-143.
  12. F. D. Drake, 1980. N is neither very small nor very large, in M. D. Papagiannis, ed., Strategies for the Search for Life in the Universe, Reidel, Boston, pp. 27-34.
  13. Freitas, R. A., Jr. and Gilbreath, Wm. P., eds., 1982. Advanced Automation for Space Missions: Final Report, NASA CP-2255.
  14. Freitas, R. A., Jr., 1980. A self-reproducing interstellar probe, JBIS 33, 251-264.
  15. R. A. Freitas, Jr., 1983. Terraforming Mars and Venus using machine self-replicating systems (SRS), JBIS 36, 139-142.
  16. Martin, A. R., ed., 1978. Project Daedalus -- The final report on the BIS starship study, JBIS, 1978 Interstellar Studies Supplement, London, England.
  17. Valdes, F. and Freitas, R. A., Jr., 1980. Comparison of reproducing and nonreproducing starprobe strategies for galactic exploration, JBIS 33, 402-406.
  18. Foyle, F. and Elliott, J., 1962. A for Andromeda, Harper & Row, New York.
  19. Shklovskii, I. S. and Sagan, C., 1966. Intelligent Life in the Universe, Holden-Day, Inc., New York.
  20. Dohnanyi, J. S., 1972. Interplanetary objects in review: Statistics of their masses and dynamics. Icarus 17, 1-48.
  21. Fujiwara, A., 1980. On the mechanism of catastrophic destruction of minor planets by high-velocity impact. Icarus 41, 356-364.
  22. Rensch, B., 1960. Evolution Above the Species Level, Columbia University Press, New York.
  23. Volkoff, J. J., 1966. System protection requirements for the resistance of meteoroid penetration damage. J. Spacecraft and Rockets 3, 26-34.
  24. Katz, J. I., 1975. Numerical orbits near the triangular lunar libration points. Icarus 25, 356-359.
  25. Burns, J. A., Lamy, P. L. and Soter, S., 1979. Radiation forces on small particles in the Solar System. Icarus 40, 1-48.
  26. Szebehely, V., 1980. Stability of planetary orbits in binary systems. Cel. Mech. 22, 7-12.
  27. Perini, L. L., 1975. Economical scheme for estimating orbital lifetimes. J. Spacecraft and Rockets 12, 323-324. See errata, J. Spacecraft and Rockets 13, 1976, 64.
  28. Ziegler, J. F. and Lanford, W. A., 1979. Effect of cosmic rays on computer memories. Science 206, 776-788.
  29. Harrington, R. S., 1977. Planetary orbits in binary stars. Astron. J. 82, 753-756.
  30. Markellos, V.V. and Roy, A. E., 1981. Hill stability of satellite orbits. Cel. Mech. 23, 269-275.
  31. Tombaugh, C. W., Robinson, J.C., Smith, B. A., and Murrell, A. S., 1959. The search for small natural Earth satellites: Final technical report. Physical Science Laboratory, New Mexico State University.
  32. Chernyak, Yu. B., 1978. On recent lunar atmosphere. Nature 273, 497-501.
  33. Pickering, E. C., 1890. Photographic search for a lunar satellite. In "Miscellaneous Researches made during the years 1886-1890, Annals of the Astronomical Observatory of Harvard College 18, No. 4, 77-83.
  34. Barnard, E. E., 1895. On a photographic search for a satellite to the Moon. Astrophys. J., 2, 347-349.
  35. Schechter, H. B., 1968. Three-dimensional nonlinear stability analysis of Sun-perturbed Earth-Moon equilateral points. AIAA J. 6, 1223-1228.
  36. Kamel, A. A., 1969. Perturbation Theory Based on Lie Transforms and Its Application to the Stability of Motion Near Sun-Perturbed Earth-Moon Triangular Libration Points. Ph.D. dissertation, Stanford University.
  37. Kolenkiewricz, R. and Carpenter, L., 1968. Stable periodic orbits about the Sun-perturbed Earth-Moon triangular points. AIAA J. 6, 1301-1304.
  38. Roosen, B. G., Harrington, B. S., Jeffreys, W. H., Simpson, J. W., and Miller, B.G., 1967. Doubt about libration clouds. Phys. Today 20, 5, 10-15.
  39. Schutz, B. E. and Tapley, B. D., 1970. Numerical studies of solar influenced particle motion near the triangular Earth-Moon libration points. In G. E. O. Giacaglia, ed., Periodic Orbits, Stability and Resonances, D. Reidel, Dordrecht, Holland, 128-142.
  40. Tilton, H. A., 1980. Three dimensional orbital stability about the Earth-Moon equilateral libration points. M.S. Thesis, Air Force Institute of Technology, Wright-Patterson AFB, Ohio.
  41. Kordylewski, K., 1961. Photographic Investigations of the libration point L5 in the Earth-Moon system. Acta Astron. 11, 165-169. In German. Air Force Cambridge Research Laboratories, Research Translation E-T-G-64-35.
  42. Kordylewski, K., 1971. The dust ring of the Earth. Problemy Kosmicheskoi Fiziki, no. 6, 164-167. In Russian.
  43. Simpson, J. W., 1967. Dust cloud moons of the Earth. Phys. Today 20, 2, 39-46.
  44. Allen, W. V., Krumm, W. J. and Randle, R. J., 1967. Visual observations of lunar-librationcenter clouds. In J. L. Weinberg, ed., The Zodiacal Light and the Interplanetary Medium, NASA SP-150, 91-95.
  45. Roach, F. E., Carroll, B., Roach, J. R. and Aller, L. H., 1973. A photometric perturbation of the counterglow. Planet. Space Sci. 21, 1185-1189.
  46. Munro, R. H., Gosling, J. T, Hildnerp E., MacQueen, R. M. and Ross, C. L., 1975. A search for forward scattering of sunlight from lunar libration clouds. Planet. Space Sci. 23, 1313-1321.
  47. Roach, J. R., 1975. Counterglow from the Earth-Moon libration points. Planet. Space Sci. 23, 173-181.
  48. Wolfe, C., Dunkelman, L. and Haughney, L.C., 1967. Photography of the Earth's cloud satellites from an aircraft. Science 157, 427-429.
  49. Roosen, B. G., 1968. A photographic investigation of the Gegenschein and the Earth-Moon libration point L5. Icarus 9, 429-439.
  50. Weinberg, J. L., Beeson, D. E. and Hutchison, P. B., 1969. Photometry of lunar libration regions. Bull. Amer. Astron. Soc. 5, 210-233.
  51. Morris, E. C., 1971. Spaceborne Earth-Moon libration regions photography during Gemini 12 flight. In The Gemini Program: Physical Science Experiments Summary NASA Manned Spacecraft Center, 71-75
  52. Schlosser, W., Maitzen, H. M. and Hablick, D., 19T5. Upper limits for brightness and dust concentration of the hypothetical libration cloud at L4 in the system Earth-14oon based on photographic surface photometry. Astron. Astrophys. 45, 197-202.
  53. Shoemaker, E. M., personal communication, 1982.
  54. Bruman, J. R., 1969. A lunar libration point experiment. Icarus 10, 197-200.
  55. Tombaugh, C. W., personal communication, 1981.
  56. Freitas, R. A., Jr. and Valdes, F., 1980. A search for natural or artificial objects located at the Earth-Moon libration points. Icarus 42, 442-447.
  57. Jurgens, R., 1967. Search at Lagrangian points. Cornell University Research Report RS-70, AFOSH Contract AF-49(658)-1156, 31 January 1967, 76-77.
  58. Valdes, F. and Freitas, R. A., Jr., 1983. A search for objects near the Earth-Moon Lagrangian points. Icarus 53, 453-457.
  59. Farquhar, R. W., 1970. The Control and Use of Libration Point Satellites, NASA TR R-346.
  60. Breakwell, J. V. and Brown, J. V., 19T9. The 'halo' family of 3-dimensional periodic orbits in the Earth-Moon restricted 3-body problem. Celest. Mech. 20, 389-404.
  61. Breakwell, J. V., personal communication, 1980.
  62. Stone, L. D., 1975, Theory of Optimal Search, Academic Press, New York.
  63. Lawton, A. T . and Newton, S. J., 1974. Long delayed echoes - the trojan ionosphere. JBIS 27, 907-920.
  64. Jurgens, R. F. and Bender, D. F., 1977. Radar detectability of asteroids: A survey of opportunities for 1977 through 1987. Icarus 31, 483-497.
  65. Morrison, D., 1977. Asteroid sizes and albedos. Icarus 31, 185-220.
  66. Hansen, O. L., 1977. An explication of the radiometric method for size and albedo determination. Icarus 31, 456-482
  67. Lebofsky, M. J., Sargent, D. G., Kleinmann, S. G. and Rieke, G. H., 1978. An observational study of the AFCRL infrared sky survey. Astrophys. J. 219, 487-493.
  68. Aumann, H. H. and Walker, R. G., 1977. Infrared astronomical satellite. Opt. Eng. 16, 537-543.
  69. Stormer, C., 1928. Short wave echoes and the Aurora Borealis, Nature 122, 681.
  70. Van der pol, B., 1928. Short wave echoes and the Aurora Borealis, Nature 122, 878-879.
  71. Lawton, A. T. and Newton, S. J., 1974. Long delayed echoes: The search for a solution, Spaceflight 16, 181-187, 195.
  72. A galactic Sputnik? Spaceflight 16, 105, (1974).
  73. Belitsky, B., 1977. CETI in the Soviet Union, Spaceflight 19, 193, 196.
  74. Kuiper, T. B. H. and Morris, M., 1977. Searching for extraterrestrial civilizations, Science 196, 616-621.
  75. Wolfe, J. H., Edelson, R. E., Billingham, J., Crow, R. B., Gulkis, S., Olsen, E. T., Oliver, B. M., Peterson, A.M., Seeger, C. L. and Tarter, J. C., 1981. SETI -- The search for extraterrestrial intelligence: Plans and rationale. In J. Billingham, ed., Life in the Universe, MIT Press, Cambridge, Massachusetts, 391-415.
  76. Gehrels, T., 1979. The asteroids: History, surveys, techniques, and future work. In T. Gebrels, ed., Asteroids, University of Arizona Press, Tucson, 3-24.
  77. Dunbar, R. S., 1979. The search for asteroids in the L4 and L5 libration points in the Earth-Sun system. In J. Grey, C. Krop, eds., Space Manufacturing III, Proceedings of the Fourth Princeton/AIAA Conference, 14-17 May 1979, 560-568.
  78. Farquhar, R. W., 1970. The Moon's influence on the location of the Sun-Earth exterior libration point. Celest. Mech. 2, 131-133.
